Reference Cross

A Reference Cross provides a convenient way to display the units of measurement associated with a specific connection model on the flowsheet. While individual result crosses drawn on connections show values, they may not explicitly indicate the measurement units.

A Reference Cross serves as a general reference guide, showing the units in a compact, four-field grid. It can be positioned anywhere on the flowsheet, similar to a Data Frame.

Creating a Reference Cross

To create a new Reference Cross:

  1. Open the Objects  Add Reference Cross.

  2. A dialog will appear, as shown in Figure 1, prompting you to select a connection model.

create reference cross dialog

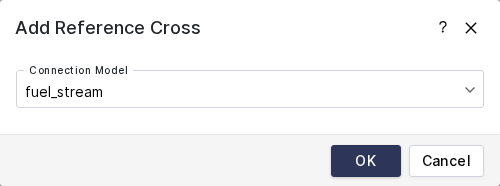

Figure 1. Create Reference Cross Dialog

Once created, the Reference Cross automatically displays the current units of measurement used by result crosses on connections of the selected model. This ensures a clear and consistent reference for interpreting the values shown on the flowsheet.
