Editor
In IPSE GO the editor refers to the window that allow the modification of the project content. The editor is the main window of the process simulation application and contains menus, windows and dialogs to manage the project.

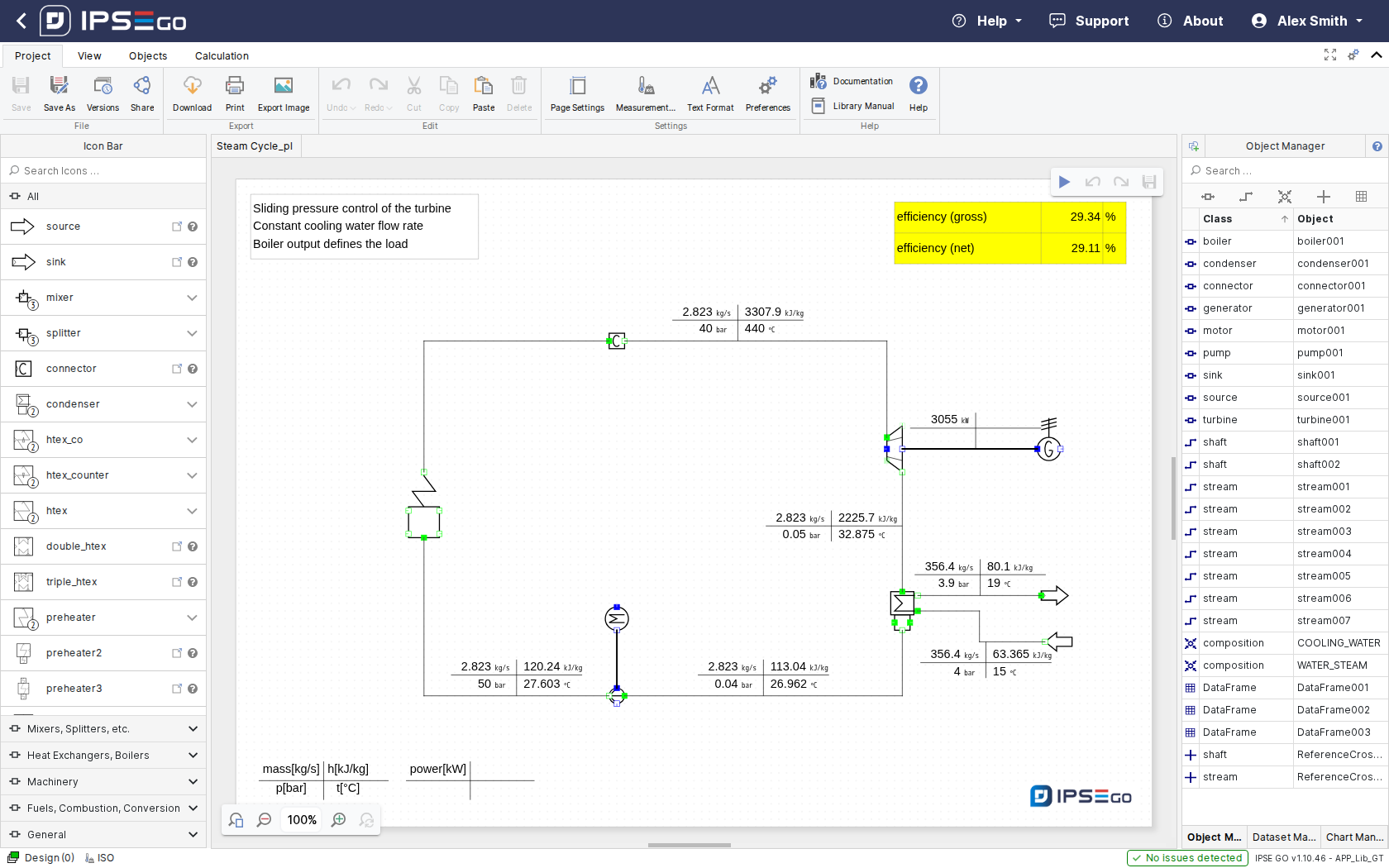

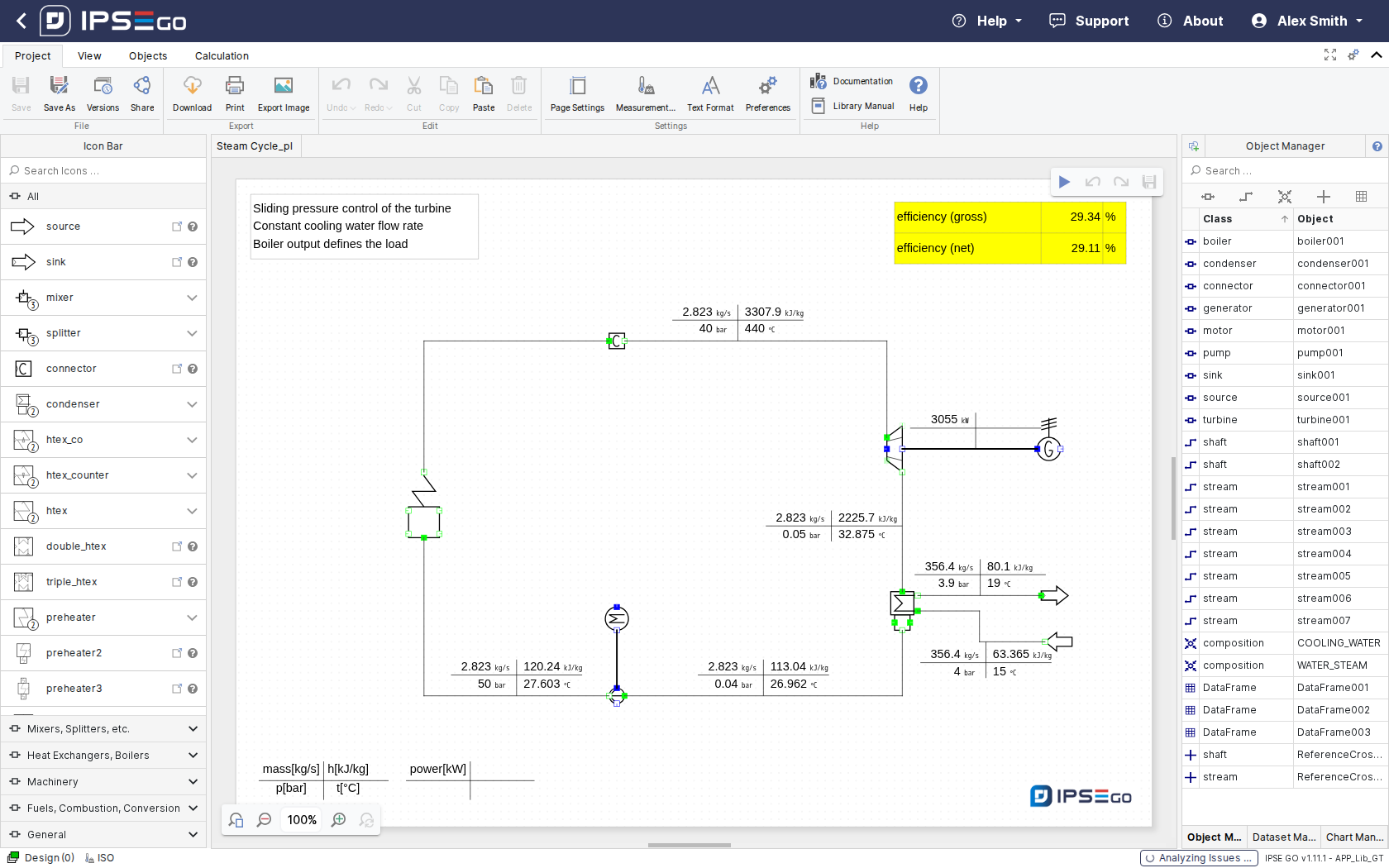

Flowsheet Window
The flowsheet window is the main window of the editor. It contains the flowsheet with all units and connections. Interaction with the flowsheet can be done using the mouse and keyboard. To create a new unit use select the icon from the icon bar and click on the desired position on the flowsheet. To connect a unit to a different object select the desired terminal and connect it to a compatible counterpart. By double clicking on an object, the object data can be edited as described in Data Management.
The flowsheet contains panels that allow further interaction with the flowsheet.

-
Quick Access Menu. This menu contains contains the most used actions to interact with the project such as saving, running a calculation or undo/redo actions.

-
View Menu. The view menu contains helpful information on the zoom level of the flowsheet and allows the user to zoom into a specific area.

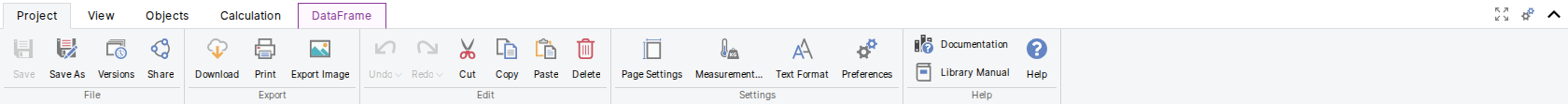

Editor Toolbar
The editor toolbar is located at the top of the editor page. It contains multiple menus for different actions types.

Available menus are:
-
Project. This menu contains actions to manage and save the project. It is similar to the file menu in other applications.
-
View. This menu contains actions to manage the view and open windows of the editor.
-
Objects. The object menu contains actions to create and edit objects and their data.
-
Calculation. The calculation menu controls settings for the solver and the calculation output. It is also used to modify the type of the solver.
-
Data Frame. This menu contains actions to manage selected data frames and their cells. More information about data frames can be found in Data Frame.
The data frame menu is only displayed when a data frame is selected. The data frame menu actions modify an existing data frame and therefore has no use without a valid selection. |
Icon Bar
The icon (side)bar contains icons for all the units available in the model library. Icons are grouped into icon categories. They can be searched by name via the search bar the top of the icon bar.
Some icons are available with different rotations and terminal layouts. Icon groups contain a counter indicating the number of available icon variants. The icon variants can be expanded so that the user can select the desired icon variant.

After confirming the unit creation by clicking on the flowsheet, the unit is created at the target position.
The icon sidebar also provides access to samples if available by clicking on the Open Sample button (). To open the library reference for the unit click the help Help button (
).

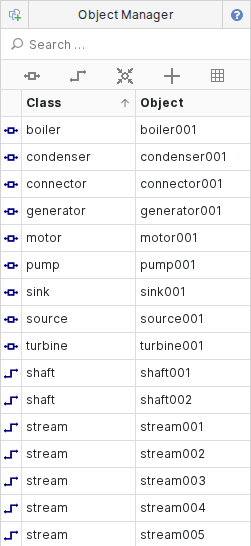

Object Manager
The object manager provides a list of objects that are part of the project. It allows the user to filter, select and rename objects. Similar to the flowsheet, the objects can be double clicked to open the object editor. Via the context menu item Rename it is possible to rename objects. Use the context menu item Delete to delete selected objects.
Object names must be unique within the project and can only contain alphanumeric characters and underscores cannot start with a number. |

To select multiple objects, hold down the Ctrl key and click on the desired objects. Or press and hold Shift and click on the first and last object to select all objects in between. Clicking on the object again while holding Ctrl will deselect the object.
It is possible to search in the object manager. The search is case insensitive and will match any part of the object or class name. Filters allow to select the type of objects to display. To sort the objects, click on the column header of the desired column.
Via the context menu it is also possible to enable/disable or lock/unlock objects on the flowsheet.

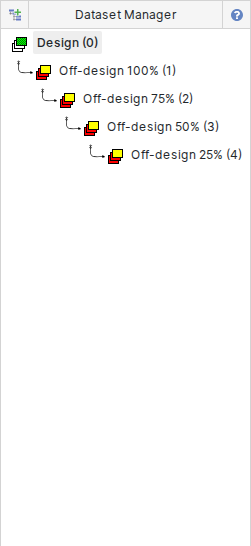

Dataset Manager
The dataset manager allows the user to manage datasets.
A dataset represents a specific model configuration. Datasets allow to simulate the same process setup with different parameter configurations. Typically, datasets are used to simulate alternative operating cases without having to create new projects.
Datasets are hierarchical, which means that child datasets can use the calculated results of the parent dataset via an update mechanism. Each project always contains at minimum one dataset. For more information on datasets refer Advanced Data Management.

Similar to the object manager, the dataset manager allows to filter, select and rename datasets.
To edit a dataset or change its source dataset, double click on the dataset in the dataset manager or right click and select Edit.
To create a new dataset, click on the New Dataset button () or right click on the dataset manager and select New Dataset.
Each dataset entry also displays its status via an icon. The different meanings behind the items are described in the following section.
Dataset Status Icons
The following table explains which calculation and update status each dataset icon represents:
Icon | Description |
---|---|
The calculation was successful and is up to date. The dataset does not need to be updated. |
|
No calculation has been performed yet or the model has changed since the last calculation. The dataset does not need to be updated. |
|
The calculation failed, the model or the configuration contain errors. The dataset does not need to be updated. |
|
The last calculation was successful but the parent dataset has changed, so this dataset needs to be updated. |
|
No calculation has been performed yet or the model has changed since the last calculation. Also, the parent dataset has changed, so this dataset needs to be updated. |
|
The calculation failed, the model or the configuration contain errors. Also, the parent dataset has changed, so this dataset needs to be updated. |

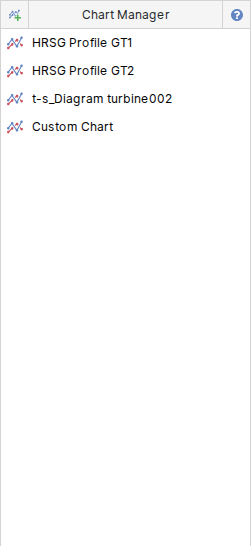

Chart Manager
The chart manager provides access to all the charts available in the project. The chart manager is only available if the model library provides chart creation scripts.
To open a chart, double click on the chart in the chart manager or right click and select Show. Similar to other managers, the chart manager is can be used to rename, edit and delete charts. This can be done via the context menu with the Rename, Edit and Delete Chart items.

Before creating a chart make sure to select the target object. Most charts require a target object to be selected before in order to create a chart accordingly.
Click on the Create Chart button () in the title bar or if not chart exists click on Create Chart to show the available chart types.
