Basic Operations

This section explains basic IPSE GO operations, like creating a new project, saving the project or printing it. Many of these operations are available in other web applications.

Exploring Application Pages

In order to use IPSE GO you have to log in to your IPSE GO account. Once you have logged in you usually are at the dashboard of IPSE GO, see Figure 1.

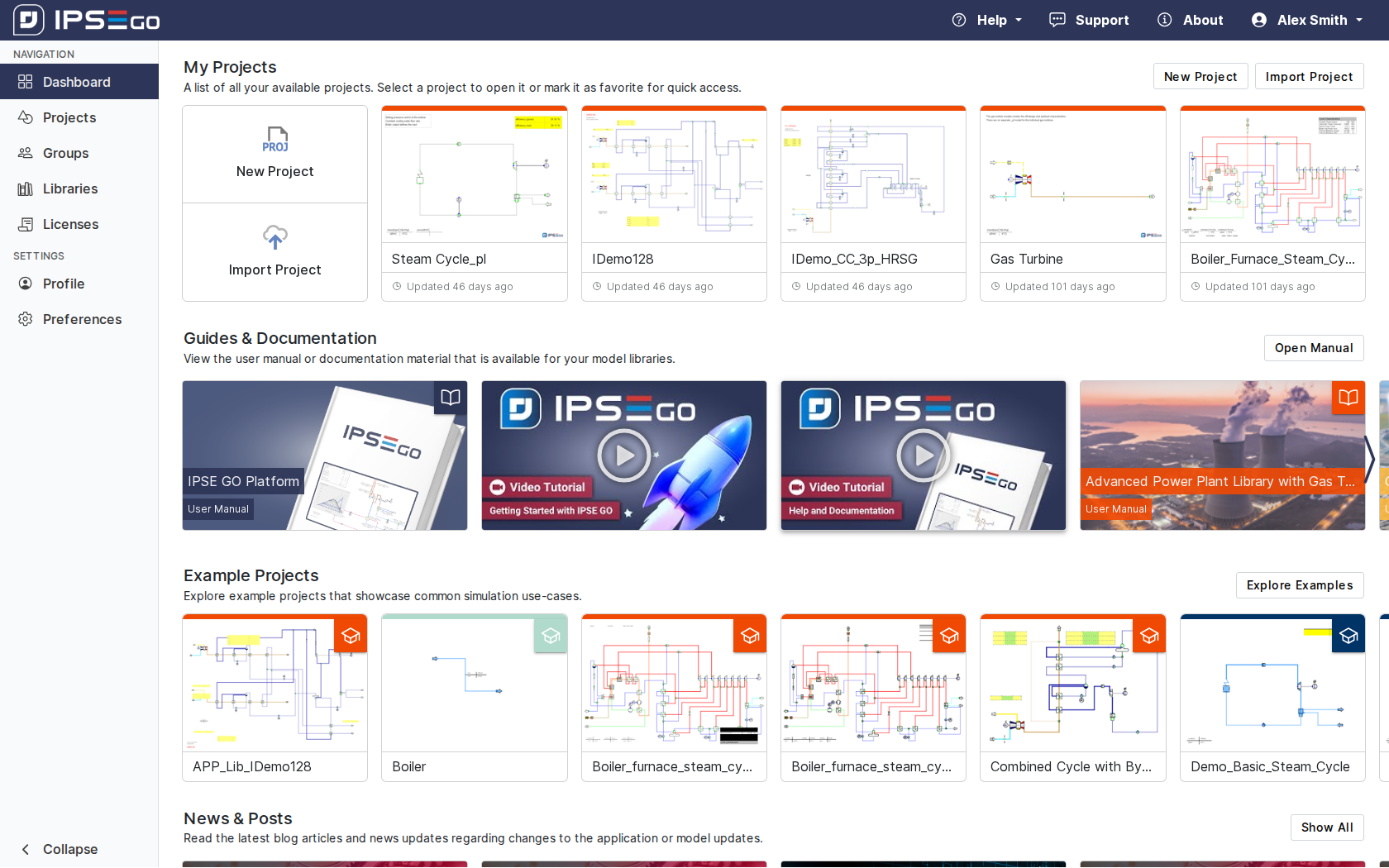

dashboard page
Figure 1. The dashboard page is the first screen users are presented in IPSE GO.

In the dashboard you have four rows of tiles:

  • My projects.
    Provides access to all user projects and the ability to directly create new project or import existing projects from the device.

  • Guides and Documentation.
    Refers to general video and textual tutorials as well as links to supporting material for each of the libraries that the user has licensed.

  • Explore Example projects.
    This row contains examples of the licensed libraries. They are listed for quick access and can also be found under Libraries  Library Name  Example Projects.

  • News & Posts.
    This row contains news and blog articles regarding IPSE GO and the IPSE product family. Version updates and new functionality is also communicated in via links in this section.

Creating a New Project

To create a new project in IPSE GO:

  1. Navigate to the dashboard

  2. Click the Create Project button

  3. Fill out the new project dialog shown in Figure 2

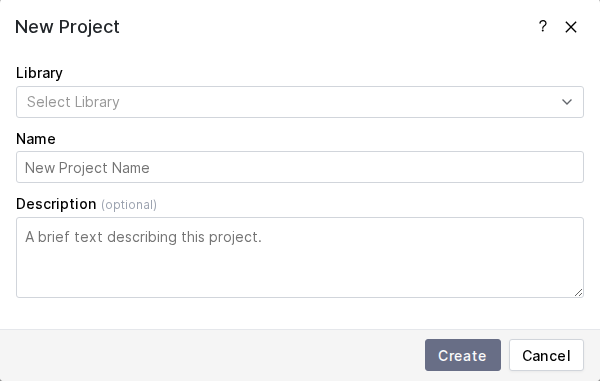

create project dialog
Figure 2. Creating a new project through the project creation dialog

The new project dialog requires the following information:

  • Library
    Select the model library for your project. This choice determines the available units, global variables, and model equations. The library selection cannot be changed after project creation.

  • Project Name
    Enter a name for your project. This will be displayed throughout SimTech IPSE GO. While a project name is required, it does not need to be unique and can be modified later.

  • Project Description
    Optionally add a brief description to help identify the project’s purpose and contents. This can be particularly useful when managing multiple projects.

After filling out the required fields, confirm by clicking Create to create your new project. The project editor should be opened automatically.
